72" Linestop® with a 100% Shutdown on a Steel Water Main in Houston, Texas
- Job Status: Job completed.
- Job Date: March 26, 2019
- Location: Waterline Improvements - Houston 72” Linestop® Emancipation Avenue
- IFT is pleased to introduce the following completed 72" Linestop® project.
- For Linestop® Services
- Line Pressure: 100 or less
- Line Contents: Water Main
- Flow Rate: Less Than .5 Feet per second (FPS)
- Pipe Material: Steel Pipe
- Pipe Specifications: 72” – Horizontal Linestop®
- Fitting: Carbon Steel Primer Coated & Hardware.
- Completion Plug: Carbon Steel Primer Coated
- Blind Flange: Steel 150# CL D Epoxy Coated W / 2 Lifting Lugs
- Maximum Flow Rate allowed: Flow rates of 1 ft/sec shall not be exceeded.
72” – Diameter Linestop®
Linestop® Fitting
1 – Linestop fitting with Completion plug, Blind flange and NBG set
Linestop® Service Municipal Pipeline - Water
Installation/Welding of fitting by others
1- Pressure test
1 – Loaner Valve for Linestop
1 – Insertion of Temporary linestop (up to 14 days) (Under 100 PSI)
1 - Removal of Linestop and valve with completion plug and Blind Flange
installation
Machinery rental.
Reinsertion of 72” Diameter Linestop®
1 – Removal of Blind flange
1- Installation of Temporary Loaner valve
1 – Removal of Completion Plug
1 – Insertion of Temporary linestop (up to 14 days) (Under 100 PSI)
1 - Removal of Linestop and valve with completion plug and Blind Flange
installation
Machinery rental.
Office hours 7:30 – 5:00 Central time
Nationwide: 1-800-221-3332
Emergency Services Available .
- Details
User Rating: 5 / 5
6” Pipe FreezePlug on Sch. 40 Steel Water Line
Job Date: February 12, 2018
Location: Houston, Texas
Job Specifics: 6” Pipe FreezePlug on Sch. 40 Steel Water Line
Item I – 6” Pipe FreezePlug on Sch. 40 Steel Water Line – Approx 50 psi
Office hours 7:30 – 5:00 Central time
Nationwide: 1-800-221-3332
Emergency Services Available .
- Details
User Rating: 5 / 5
42” Linestop through a 30" Hottap on CMLC Water Line
Job Date: February 27, 2018
Location: Houston, Texas
Job Specifics: Linestop® Fitting 42” Mortar Coated Steel Pipe - Water
1 – 42” Linestop fitting for Potable Water Pipeline (apx.85 PSI) JCM 445 PCCP style
Linestop® 42” Mortar Coated Steel Pipe - Water Installation of fitting & pressure test per specification
1 – Insertion of Temporary 42” linestop (up to 14 Days or Less)
1 - Removal of Linestop, install Completion Plugs and Blind Flanges
Office hours 7:30 – 5:00 Central time
Nationwide: 1-800-221-3332
Emergency Services Available .
- Details
User Rating: 5 / 5

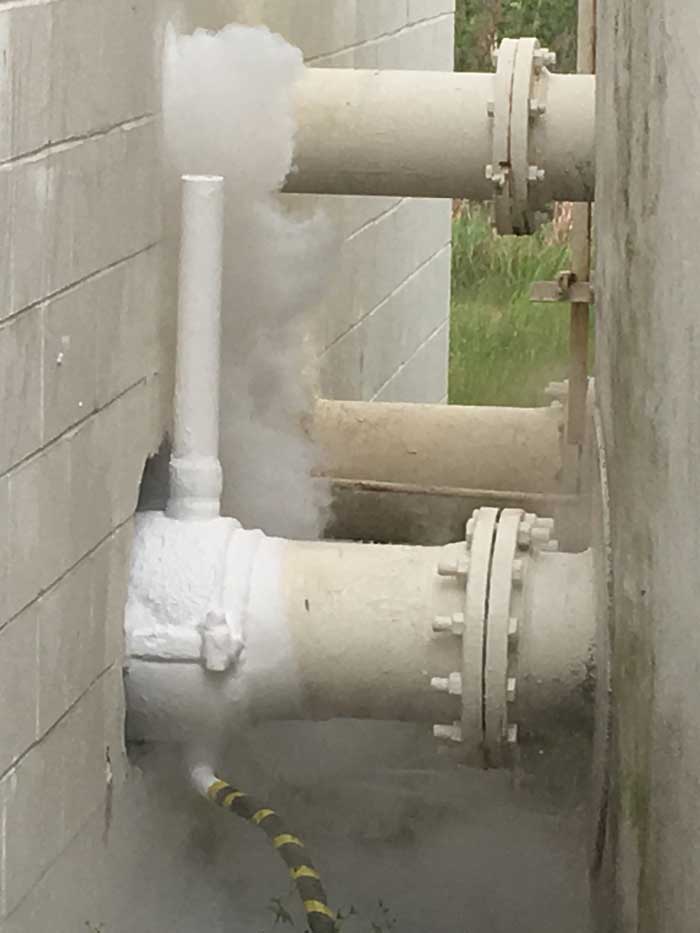

10” Pipe Freezing on Sch. 40 Steel Water Line
Job Date: February 1, 2018
Location: Houston, Texas
Job Specifics: 10” Pipe Freezing on Sch. 40 Steel Water Line in a Tight Location
1 – Travel to site included (weekday hours)
Item I –FreezePlug Service on Carbon Steel Industrial Water
1 – 10” FreezePlug on Water (under - 80 degree F & 20 psi) 27” of clear pipe for freezeplug (IFT cannot freeze over welds) FreezePlug held for up to 4 hours while you modify pipeline
Office hours 7:30 – 5:00 Central time
Nationwide: 1-800-221-3332
Emergency Services Available .
- Details
User Rating: 5 / 5
2- 30” Linestops on PCCP Water Main with By Pass in Corsicana, Texas
Job Date: May 30, 2018
Location: Corsicana, Texas
Job Specifics: 2- Linestop 30” PCCP Water Main with By Pass
Line Pressure: 100 PSI working pressure or less Line Contents:
Water Main Pipe Material: PCCP B-303
Pipe Specifications: Pipe OD = 35.00” Max – Cylinder OD = 31.875”
ltem l Linestop 30” PCCP Water Main with By Pass
1 – Set Up and Mobilization to site
2 – 30” Linestop Fittings for PCCP Water Pipeline (100 PSI or less) (JCM 445 Primer Coated Bodies / Epoxy Coated Water Way – Alloy bolts)
2 – 24” Hot Taps to allow for linestop entry
2 - 2” Saddles with Taps for blow off and equalizing to remove linestops (JCM 425 Primer Coated Bodies / Epoxy Coated Water Way – Alloy bolts)
2 – Insertion of 30” linestop for 7 Days or Less 2– Removal of Linestop, install Completion Plugs and Blind Flanges.
