Broken Valve Before and Replaced New Valve After

Pipeline Freeze Plug Services:

Pipe freeze plugs are a simple, cost-effective method to perform pipeline maintenance, or pipe modifications, without draining. Using liquid nitrogen, IFT can isolate the problem area in the line by freezing the product inside the pipeline to form one or more solid freeze plugs. This allows for very little drain-down or refill, and in many cases, no system downtime. Once the work is complete, the pipeline freezes are thawed and the pipeline is back in operation. Standard line freezes range in size from 1/2" to 36" OD and can be performed on most fluids including petrochemicals. Our repeat customers include power plants, hospitals, industrial companies, mechanical contractors, hotels and manufacturing facilities. With the use of liquid nitrogen, pipe freezing is accomplished by establishing a secure and solid ice freeze plug to isolate pressures in excess of 3000 psi. Here is an example of pipe freeze plug services in our featured work area of this website.

Industrial Pipe Freeze Plug Services SlideshowDolor Sit Amet

  • Pipeline Freeze Plugs Using Liquid Nitrogen Services

    Pipeline Freeze Plugs Using Liquid Nitrogen Services

    No costly and timely system drain downs required!

  • Nationwide Pipe Freeze Plug Services

    Nationwide Pipe Freeze Plug Services

    No costly and timely system drain downs required!

  • Indoor Pipeline Freeze Plug Services Natwionwide

    Indoor Pipeline Freeze Plug Services Natwionwide

    No costly and timely system drain downs required!

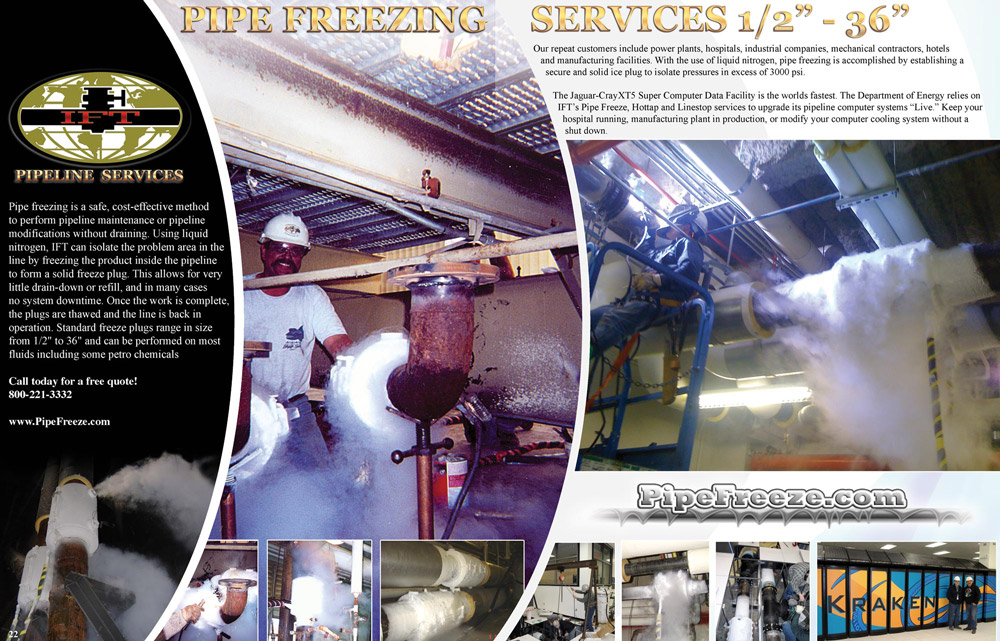

pipe freeze plugs slideshow

Kraken Oak Ridge National Laboratory Supercomputer Pipe Freeze Plug Services

Pipe Freeze for the Kraken Super Computer at the Oakridge National Lab in Tennessee
Freezing Service Handled by Professionals at the Kraken Labs
Up close look at a pipe freeze at the Kraken Super Computer Labs

IFT SERVICE FREEZE PLUGS ARE CONSTANTLY MONITORED AND ARE DESIGNED TO WITHSTAND UP TO 3,000 PSI LINE PRESSURE. INDEPENDENT LABORATORY TESTS HAVE DOCUMENTED THAT NO PHYSICAL CHANGE IN THE STRUCTURAL MATRIX OF THE PIPE OCCURS DUE TO THE CONTROLLED FREEZING PROCESS.

Pipe freezing can be performed on a variety of pipes, including:

Titanium
1/2" to 36" (13mm to 914.4mm) OD
CoCast & Ductile Ironated & Lined Pipe
Vertical, Horizontal, Inclined
Out of Round Carbon Steel
Stainless Steel
Aluminum
Lead
Copper
Brass
Cast Iron
Fiberglass
Transite
Internally / Externally Coated
Cement Lined / CMLC


Pipe freezing can be performed in most locations, including:

Malls & Shopping Centers
Fossil Fuel Power Plants
Nuclear Power Plants
Hotels & Apartment Complexes
Paper Mills
Hospital & Institutions
Industrial & Commercial Production Facilities
Telecommunications Industry
Water & Sewage Treatment
Office Buildings
Fire Protection Systems
Refineries
Schools
Chemical & Petrochemical Plants
Commercial Buildings
Hotels
Breweries
Ships
Isolation for Hydrostatic Testing
Leak Locating
Isolation for repairs or modification
