IFT Series 400 Cylinder Fitting
IFT Series 400 Cylinder Tech Fitting
IFT uses a wide range of Linestop fittings to perform pipeline connections and isolations with our line stopping machines. Our experience welding and using these style fittings dates back to the origins of the design with our 37+ years of experience and counting. Our fittings work to get the job done right the first time.
I am testing
I am testing

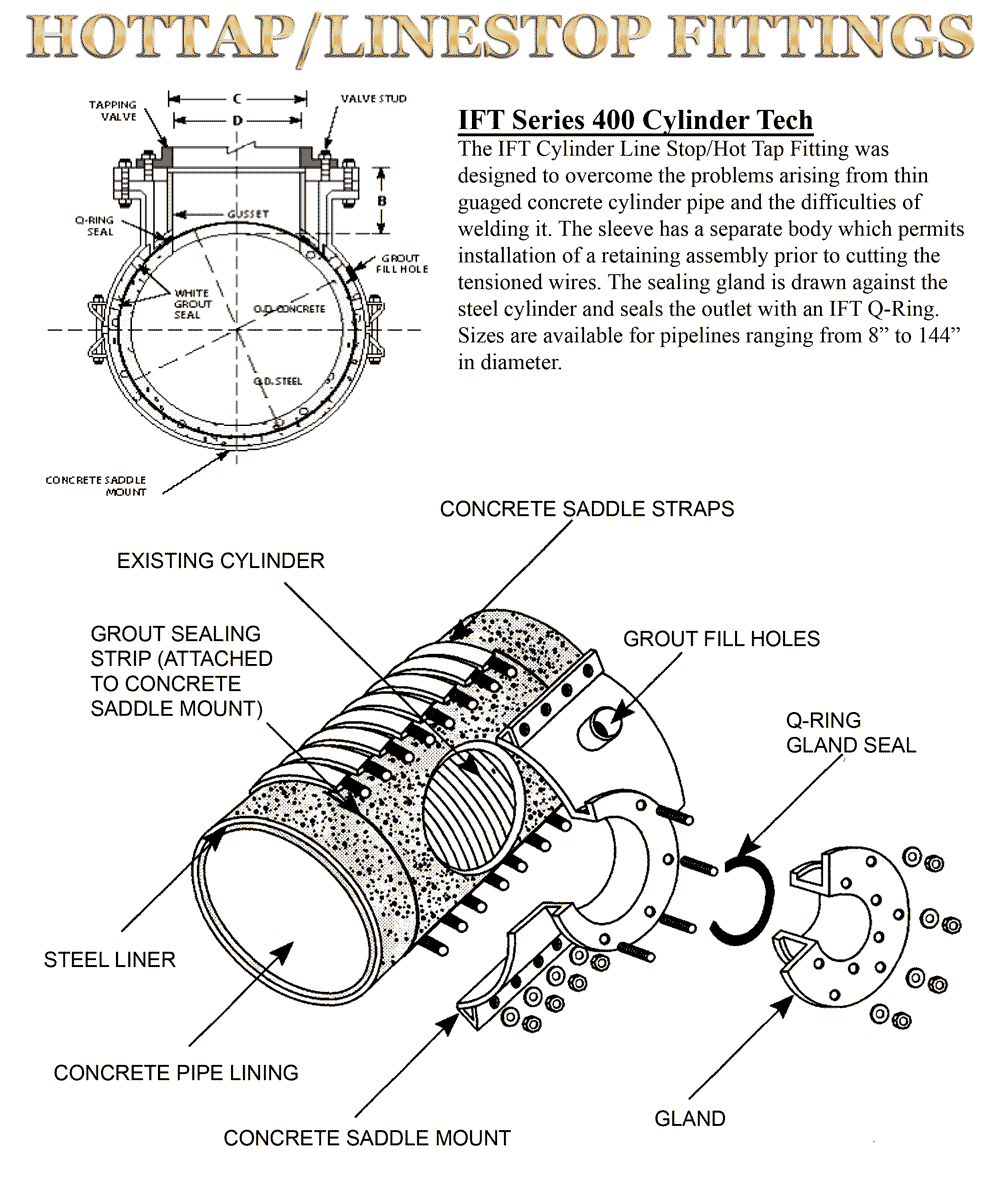

IFT Series 400 Cylinder TechThe IFT Cylinder Line Stop/Hot Tap Fitting was designed to overcome the problems arising from thin guage concrete cylinder pipe and the difficulties of welding it. The sleeve has a separate body which permits installation of a retaining assembly prior to cutting the tensioned wires. The sealing gland is drawn against the steel cylinder and seals the outlet with an IFT Q-Ring. Sizes are available for pipelines ranging from 8” to 144” in diameter.
|
Units in box: 1
