Insert Valve Specs

Pipeline Insta-Valve 250 Installation Services:

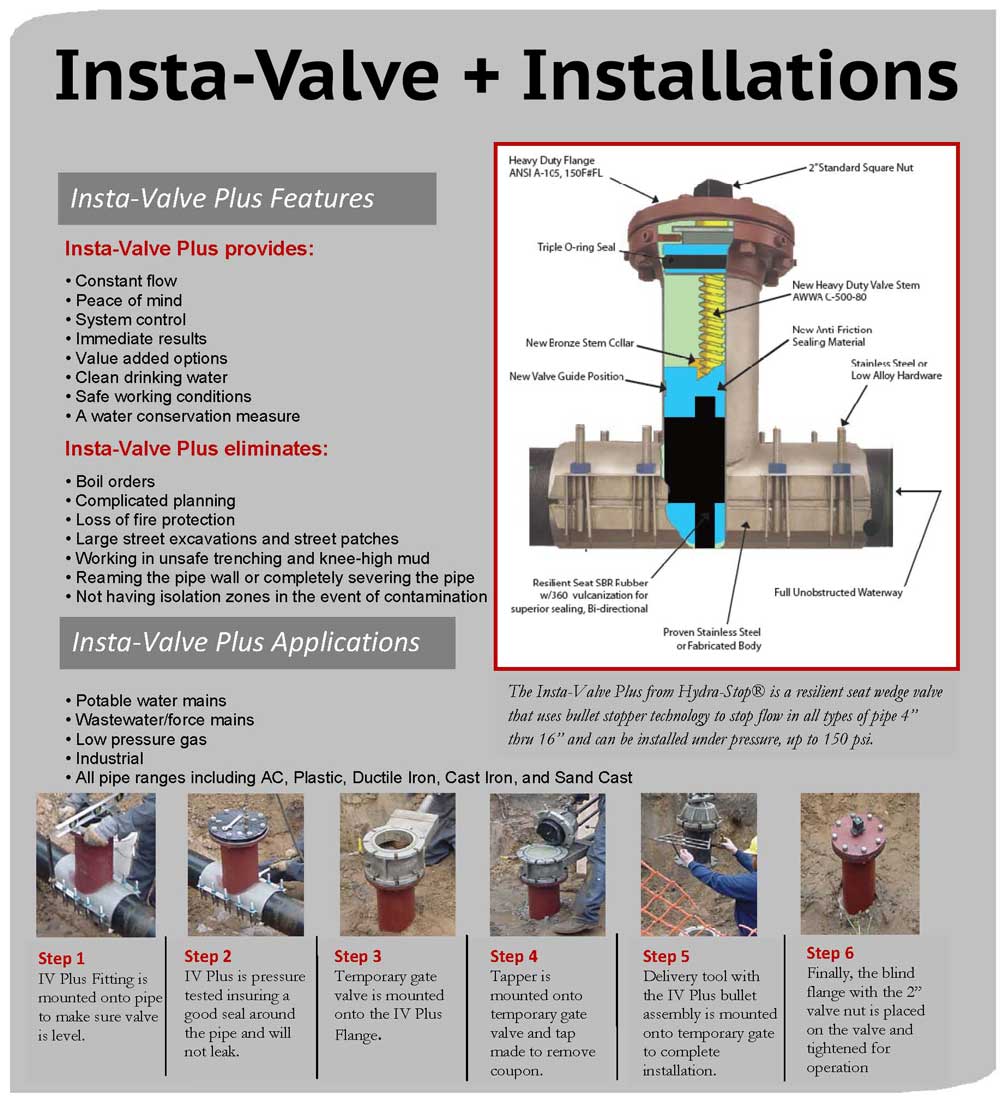

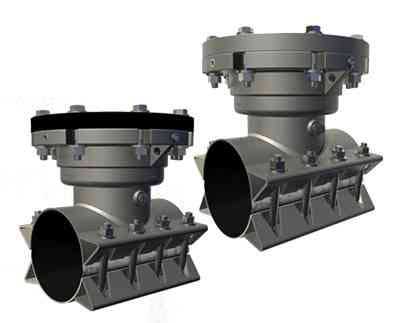

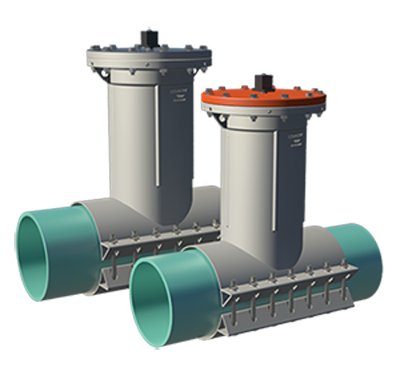

The 4"-12" IV 250 Patriot Series insertion valve from Hydra-Stop is a permanent resilient seat wedge insertion valve that uses an engineered reinforced composite polymer valve cartridge to stop flow in all types of pipe and can be installed under pressure, up to 250 psi

Insert Valve Unique Features

The Insta-Valve 250 is 100% domestic in materials and manufacture. It meets Made in USA and American Iron and Steel Requirement (Public Law 113-76). It also meets requirements specified in additional “Buy America” legislation. 4 - 12-inch Insta-Valve 250 Patriot Series Insertion Valves are NSF 61 and ANSI 372 certified by Underwriters Laboratories, Inc. to be used as a fully UL® compliant component of water systems in the United States. NSF/ANSI Standard 61 was established to provide minimum requirements for the control of potential adverse human health effects from products that contact drinking water. This includes criteria for testing and evaluating products to ensure they do not leach potentially harmful contaminants into the water system.

The Insta-Valve 250 provides a safer, more economical way of inserting valves in your system. The valve can be installed in half the time compared to traditional methods. Installed under pressure, without service disruption, the Insta-Valve 250 provides immediate system control with only one cut. The Insta-Valve 250 provides a safer, more economical way of inserting valves in your system. The valve can be installed in half the time compared to traditional methods. Installed under pressure, without service disruption, the Insta-Valve 250 provides immediate system control with only one cut. The Insta-Valve 250 stops flow in all types of pipe 4” to 12” including potable water, wastewater, and industrial applications. The reinforced resilient wedge seal is engineered to withstand 250 psi operation and the cartridge seal is designed to seal on an engineered sealing surface within the valve body. These features ensure superior performance over other available insertion valve technologies.

Benefits of the Insta-Valve 250 Installation

Avoid costly system downtime by installing Insta-valve 250 valves by Hydra-stop such as supply disruption to important facilities like hospitals, manufacturing plants, and schools. Loss of fire protection, water sampling, lab and re-chlorination costs, notification of shutdown and issuing of boil orders, loss of treated water during draining or purging and loss of water revenue. Any of these consequences could cause significant expense and derail your project.

Advanced Insta-Valve Installations Steps

1. Mount the IVP250 valve body 2. Support the IVP250 valve body 3. Mount the temporary gate valve 4. Open the temporary gate valve 5. Insert cutter into installation housing 6. Lower the cutter and begin tapping procedure 7. Complete the tap 8. Remove the cutter 9. Remove the installation housing 10. Insert IVP250 cartridge into the installation housing 11. Insert IVP250 cartridge into the valve body 12. Pin gate housing in place 13. Remove installation housing and gate valve 14. Install top flange and operating nut 15. Install valve box and adapter 16. IVP250 remains in place providing years of trouble-free service.
